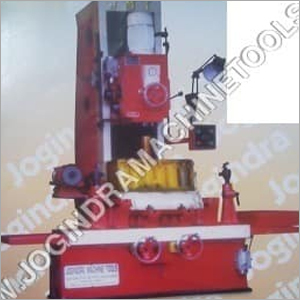

Vertical Fine Boring Machine

Vertical Fine Boring Machine
Vertical Fine Boring Machine
Product Code : 05
Product Description

We are well known in the market as one of the leading manufacturers, suppliers and exporters of Vertical Fine Boring Machine. These products are used at different construction sites for varied boring activities. Known for their effective functioning, these products have earned a high demand in the international market. Owing to their longer service life and low maintenance, these products can be used for a longer time period. Vertical Fine Boring Machine is delivered to the clients in a designated time frame owing to our expert delivery team.

Features:

  • Vertical fine Boring Machine is specially designed for fine and accurate machining of cylinder bores.

  • Manufacturer ensures years of trouble free operation as every phase of manufacturing is under strict quality control.

  • Base and column are of high grade casting.

  • Boring head travels on the guide ways protected with bellows.

  • Boring head is fitted with hardened alloy gears to give smooth feed and slide on column.

  • Controls are provided on suitable and comfortable position for easy operations.

  • Machine is having six speed gear box, but if required Electronic/Eddi-current motors and controls are provided to get stepless speeds.

  • Machine is fitted with auto return to its autostart position, after completing the Boring operation. The delay time is provided to avoid any tool marks in the finish bore.

The Machine is supplied with the following standard equipment

  • Boring Tool setting device complete with micrometer.

  • Tool holders for boring.

  • Portable grinder with suitable Grinding and Lapping wheels.

  • Two block Jacks

  • Two sets of parallel blocks 200x600mm. & 120x600 mm.

  • Set of spanners

  • One spindle fitted with machine, Capacity 65-135 mm.

Equipments at extra cost

  • Boring Spindle from 46 to 70 mm.

  • Boring Spindle from 130 to 230 mm.

  • Boring Spindle from 230 to 300 mm.

Other Products

  • Crank Shaft Regrinder

  • Cylinder Boring Machine (Portable)

  • Line Boring Machine (Horizontal)

  • Vertical Honing Machine

  • Con-Rod Boring & Grinding Machine

  • Twin Head Machine and other S. P. M. required for auto garages.

Technical Specifications



Model

651
600
Working Capacity

Boring Capacity
38-250 mm
48-250 mm
Boring Depth Max
400 mm
400 mm
Main Features

Spindle Travel Max
600 mm
600 mm
CI to column ways
254 mm
254 mm
Useful Table Surface
1305 x 470 mm
1092 x 470 mm
Table cross Transverse Max.
75 mm
75 mm
Table Transverse Max.
1100 mm
915 mm
Speed

Spindle R. P. M.
85, 150, 280, 340, 485, 600
85, 150, 280, 340, 485, 600
Feed / Revoltation
0.07, 0.10, 0.17 mm
0.07, 0.10, 0.17 mm
Rapid Up and Down
825 mm
825 mm
Motor Rating

Spindle
1.5 HP
1.5 HP
Rapid Up and Down
1 HP
1 HP
Dimensions & Weight

Length
1950 mm
1650 mm
Width
1450 mm
1450 mm
Height
2490 mm
2490 mm
Approx. Weight
2550 kg.
2250 kg.
